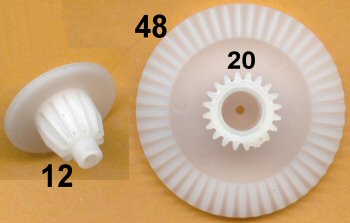

|gears-compound:coumpound-gear-set-12-48--20-dp65--h175 compound gear set|
This gear set was pulled from the head mechanism of a MTRP 20x CD-ROM. The taper gear fits an FF-050-SK motor. It offers a ratio of 4:1 and then is compounded on a 20 tooth gear with diametrical pitch of 65. It is perfect if you want to change the direction of the rotation at a right angle.
|Taper gear teeth||12|
|Matching gear teeth||48|
|inner Gear Diametrial pitch||65|
|Ratio||4:1 right angle|
|hub diameter||175 mil|
